RIG FLOOR EQUIPMENT

Casing Power Tongs

Model 24-50

Westco International • Casing & Tubing Tongs

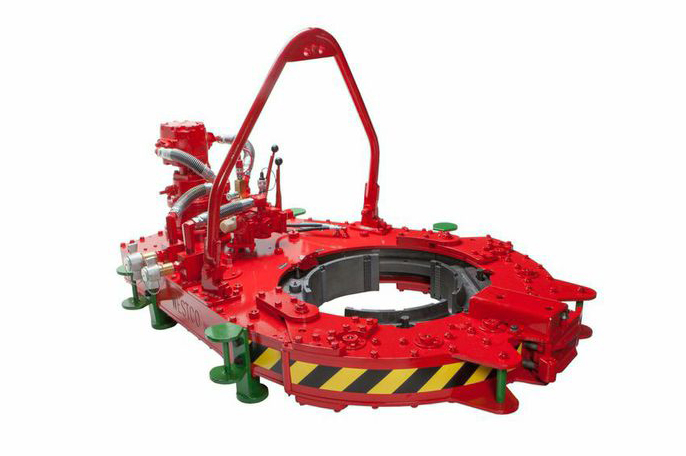

Westco International Consulting, Inc. 24-50 Hydraulic Casing Tong provide 25,000 ft-lb to 50,000 ft-lb of torque capacity for running and pulling 7” to 24” casing. At the heart of this versatile and lightweight tong is a unique gated rotary that completely encircles the casing. This design provides as many as seven contact points which distribute gripping forces over a greater area than conventional tong designs, ensuring a positive grip without damaging the casing. Contact World Petroleum Supply for in-stock details.

Choose from the best selling models from Westco's product line. Need something else? Contact our Sales Dept.

Westco Hydraulic Casing Tong - Model 24-50 stocked by World Petroleum Supply serving Texas and the world.

Westco Hydraulic Casing Tong • Model 24-25

Westco Hydraulic Casing Tong - Model 24-50 stocked by World Petroleum Supply serving Texas and the world.
Westco Hydraulic Casing Tong - Model 24-50 stocked by World Petroleum Supply serving Texas and the world.
Westco Hydraulic Casing Tong - Model 24-50 stocked by World Petroleum Supply serving Texas and the world.
  • Pipe Size Range – 7” to 24”
  • Rated Torque in Low Gear At 2,000 PSI (138 Bar) – 25,000 ft-lb 33,900 Nm
  • Rated Speed in High Gear At 70 GPM (265 LPM) – 93 RPM
  • Tong Dimensions – 34” x 54” x 31” (864 mm x 1,356 mm x 782 mm)
  • Torque Arm Length – 32” (813 mm)
  • Weight – 1,075 lbs. (488 kg)
  • Nominal Power Requirement Flow at 1,000 PSI (69 Bar) – 60 to 80 GPM (227 to 303 LPM)
  • Nominal Power Requirement Flow at 2,000 PSI (138 Bar) – 30 to 40 GPM (114 to 152 LPM)



World Petoleum Supply, Inc. stocks the Westco International Power Tongs and HPU
